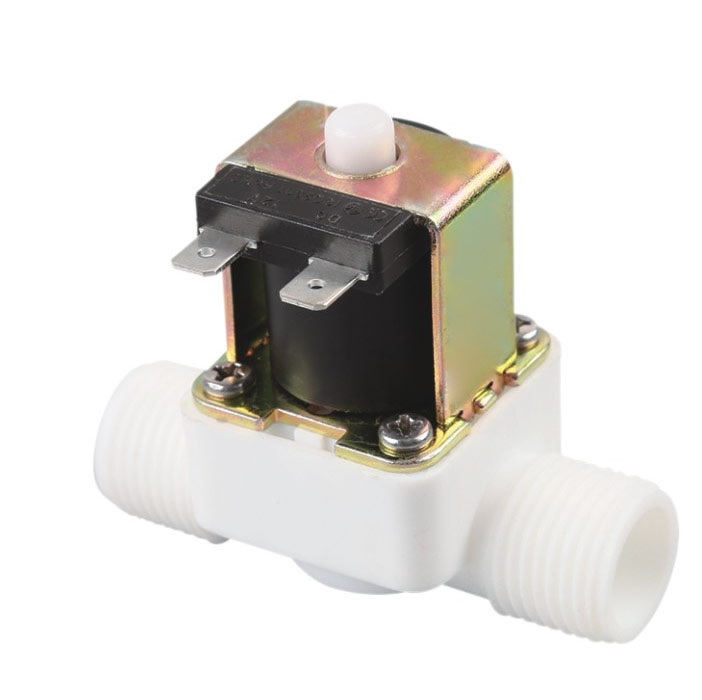

FCD.3-178K
产品类别: 常开电磁阀系列
订货需知:
1.用户在订货时,请根据"型号含义",注明所需产品具体型号规格和质量.
2.如用户有特殊需求,请在订购时详细指明
pressure(MPa)压力(MPa) | 0.02 | 0.05 | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
Average flow rate(L/min)流量平均值(L/min) | 3 | 5 | 8 | 10 | 13 | 15 | 17 | 19 | 22 | 25 |
Rated voltage | 额定电压 |
DC9V/DC12V/DC24V/DC36V/DC48V/DC110V |
|||||||||||
Coil resistance | 线圈电阻 |
26Ω±10%(20℃)41Ω±10%(20℃)125Ω±10%(20℃)287Ω±10%(20℃)410Ω±10%(20℃)3KΩ±10%(20℃) |
|||||||||||
Min Current | 最低电流 | 228mA | |||||||||||
Switch mode | 开关型式 | Direct Current Pulse | |||||||||||
Pulse Width | 脉冲宽度 | ≥30ms | |||||||||||
Operating pressure | 工作压力 | 0.02Mpa-0.8Mpa(有压)0-0.05Mpa(无压) | |||||||||||
Medium temperature | 介质温度 |
1℃-50℃ |
|||||||||||
Responding time | 响应时间 | open≤0.15s close≤0.5s 开≤0.15s 关≤0.5s |
Performance test 性能试验
The Strength test 强度试验 |
Static pressure 1.2Mpa 静压 1.2Mpa |
withstand voltage pressure耐水压 | 1.2Mpa/5min | ||||
No load test空载测试 | voltage V*0.9(电压) | permission limiting voltage 允许限压(电压) | V*1.15 | ||||
High water pressure start and closeing 高水压启动与关闭 |
At water pressure 0.8Mpa, voltage V*0.9, the solenoid valve can be started and closed normally 水压0.8Mpa, 电压V*0.9,电磁阀能正常启动与关闭 |
||||||
Low water pressure start and close 低水压启动与关闭 |
At water pressure 0.02Mpa, voltage V*0.9, the solenoid valve can be started and closed normally 水压0.02Mpa, 电压V*0.9,电磁阀能正常启动与关闭 |
||||||
Leakage High water pressure 高水压泄露量 |
1.2Mpa zero leakage 1.2Mpa无泄露 | ||||||
Leakage High water pressure 低水压泄露量 |
0.02Mpa leakage ≤0.1mL/min 0.03Mpa泄露量≤0.1mL/min | ||||||
electric strength 电气强度 |
Among The conductive part,mounting hole and nonconductive metal,it can withstand Ac 1500V/50Hz, leakage current 0.75mA, for 1min without no two breakdown 导电部分与安装孔及非导电金属之间应能承受AC1500V/50Hz,漏电电流0.75mA,1min耐压二无击穿现象 |
||||||
Insulation resistance 绝缘电阻 |
the resistance between the charged part and nonconductive metallic part tested by the megohmmeter of 500v ≥20MΩ 用500V兆欧表测试导电部分与非导电金属之间的电阻≥100MΩ |
||||||
Sealing test 密封试验 | Static pressure 静压 | air 空气 | high pressure 高压 | 1MPa | |||
Low pressure 低压 | 0.02MPa | ||||||
cold water 冷水 | high pressure 高压 | 1.2MPa | |||||
Low pressure 低压 | 0.02MPa | ||||||
Hot water 热水 | high pressure 高压 | 0.8MPa | |||||
Low pressure 低压 | 0.02MPa | ||||||
Life test 使用寿命试验 | ≥Min 1,000,000 cycles (CJ/t 194-2004) ≥1,000,000周期;符合CJ/T 194-2004要求 |
Working environment requirements 工作环境要求
Temp of Working environment 工作环境温度 |
1℃~+50℃ |
permissible limiting pressureb (Water pressure) 允许限压(水压) |
≤1.2Mpa | ||||||||
humidity Working environment 工作环境湿度 |
35%~90%RH(No condensation state) 35%~90%RH(无结露状态) |
mounting direction 安装方向 |
it is mounted in Vertical direction, the inclination doesn't exceed 15 degrees 垂直方向,倾斜度不超过15度 |
||||||||
Storage temp 保存温度 |
-5~+80℃(No freezing state) -5~+80℃(无结冰状态) |
||||||||||
Storage humidity 保存湿度 |
25%~95%RH(No condensation state) 25%~95%RH(无结露状态) |
Non-return function
止回功能
无
No
Adiustment function
调节功能
无
No
Filtering function
过滤功能
外置过滤网
Angle between coil and valve body
线圈于阀体的角度
Power supply connection
Install spacing
安装间距
无
No
built-out filter screen
360、270、180、90、0
插片
